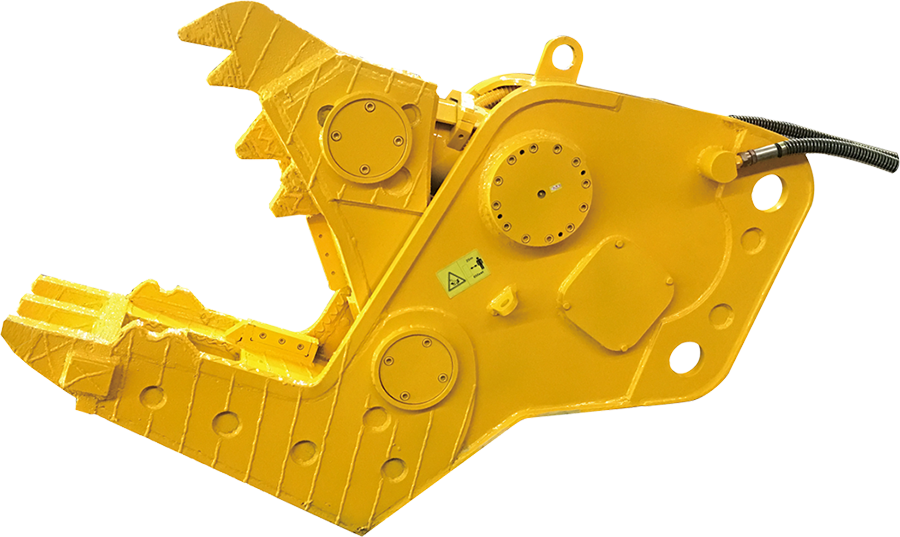

Hydraulic pulverizers(upright in cylinder)

Posotion：Home > Products > Hydraulic pulverizers(upright in cylinder)

Product name：Hydraulic pulverizers(upright in cylinder): Product features：1 Pulverizers are designed to complete a series of demolition works with excellent quality, it refers that separate steel bars from concrete blocks, bend and load into trucks to obviously improve working efficiency. 2. It is two to three times as quick as quartering hammer, realizing fully mechanization, safety and time-saving. 3. Low noise without vibration meeting the environmental requirements is suitable for demolition works in urban and industrial park. 4. ILarge opening, small bite clearance and lower-jaw with double-openings accelerate the falling and easily smash the reinforced concrete block with fast speed. 5. Steel bar cutting blade help pulverizer cut exposed steel and improve smashing works. 6.Upper-jaw and lower-jaw are provided with high hardness and wear resistance steel featured with high-wearing resistance, long service life and higher economic profit. 7.Inversion type cylinder prevents piston rod from being scratched by debris such as steel bar to make piston rod receive good protection. Special design help pipe be convenient to maintain. 8.Added oil circuit acceleration valve accelerates biting speed and improves working efficiency.

【Function introduction】

parameter

Model:Hydraulic pulverizers(upright in cylinder)
Specifications	JQFSJ-220A	JQFSJ-260A	JQFSJ-350A
Hydraulic shear weight	1580	1850	2350
Maximum opening size MM	860	900	980
Usage flow(1/min)	200-240	240-280	360-320
Applicable tonnage of excavator	20-24	25-28	30-36
Hydraulic cylinder stroke	490	490	490
note: According to different working conditions of customers, more thrust cylinders can be selected for crushing operation.

Product use overview
The crushing forceps can accomplish a series of house demolition operations excellently, namely, separating steel bars from concrete blocks, bending and loading them into trucks, thus significantly improving work efficiency.
The working efficiency is two to three times that of the crushing hammer. The operation is fully mechanized, safe and time-saving.
Low noise and no vibration, meet the requirements of environmental protection, suitable for urban and Industrial Park demolition project.
